Catalog

catalog

All d 1180-1800mm d 850-1120mm d 670-800mm d 530-630mm d 440-500mm d 360-420mm d 280-340mm d 200-260mm d 160-190mm d 120-150mm d 75-110mm d 20-70mm

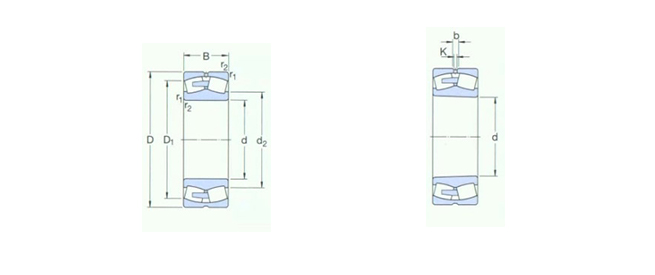

Model Bearing	d (mm)	D (mm)	B (mm)

232/500CAK/W33	500	920	336
241/500ECAK30/W33	500	830	325
231/500CAK/W33	500	830	264
240/500ECAK30/W33	500	720	218
230/500CAK/W33	500	720	167
239/500CAK/W33	500	670	128
238/500CAKMA/W20	500	620	90
23296CAK/W33	480	870	310
24196ECAK30/W33	480	790	308
23196CAK/W33	480	790	248
24096ECAK30/W33	480	700	218
23096CAK/W33	480	700	165
23996CAK/W33	480	650	128
23896CAKMA/W20	480	600	90
23292CAK/W33	460	830	296
24192ECAK30/W33	460	760	300
23192CAK/W33	460	760	240
24092ECAK30/W33	460	680	218
23092CAK/W33	460	680	163
23992CAK/W33	460	620	118
