Basic size of mm

d	480
D	790
B	248

The basic rated load is kN

trends C	6950
static state Co	12000

Fatigue load limit Pu	780

Rated rotation speed is r/min

Refer to the speed	400
limit speed	750

quality	485

model

Column hole	*23196CA/W33
conical bore	*23196CAK/W33

Dimensions are mm

d	480
d2 ～	577
D1 ～	692
b	22.3
k	12
r1,2 min	7.5

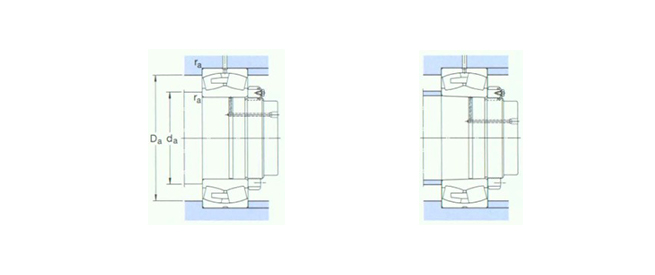

Shoulder gear and chamfer size mm

da min	512
Da max	758
ra max	6

Calculation coefficient

e	0.3
Y1	2.3
Y2	3.4
Y0	2.2
