catalog
deep groove ball bearing
angular contact ball bearing
Automatic centering ball bearing
cylindrical roller bearing
tapered roller bearing
spheric roller bearing
CARB ring roller bearing
ball thrust bearing
The cylindrical roller thrust bearing
Spherical roller thrust bearing
Special application bearing
Sensor bearing unit
tapered adapter-sleeve
withdrawal sleeve
locknut
SNL bearing block
|
Model Bearing |
Picture |

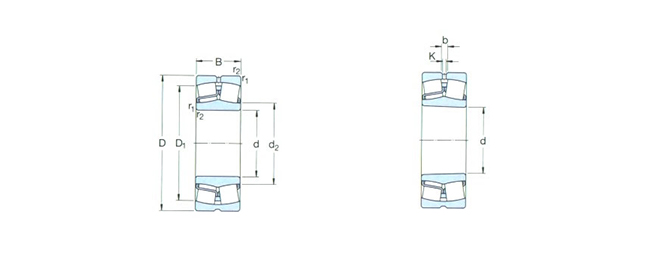

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 22352CCK/W33 | 260 | 540 | 165 | |||
| 23252CCK/W33 | 260 | 480 | 174 | |||
| 22252CCK/W33 | 260 | 480 | 130 | |||
| 24152CCK30/W33 | 260 | 440 | 180 | |||
| 23152CCK/W33 | 260 | 440 | 144 | |||
| 24052CCK30/W33 | 260 | 400 | 140 | |||
| 23052CCK/W33 | 260 | 400 | 104 | |||
| 23952CCK/W33 | 260 | 360 | 75 | |||
| 22348CCK/W33 | 240 | 500 | 155 | |||
| 23248CCK/W33 | 240 | 440 | 160 | |||
| 22248CCK/W33 | 240 | 440 | 120 | |||
| 24148CCK30/W33 | 240 | 400 | 160 | |||
| 23148CCK/W33 | 240 | 400 | 128 | |||
| 24048CCK30/W33 | 240 | 360 | 118 | |||
| 23048CCK/W33 | 240 | 360 | 92 | |||
| 23948CCK/W33 | 240 | 320 | 60 | |||
| 22344CCK/W33 | 220 | 460 | 145 | |||
| 23244CCK/W33 | 220 | 400 | 144 | |||
| 22244CCK/W33 | 220 | 400 | 108 | |||
| 24144CCK30/W33 | 220 | 370 | 150 |
