Catalog

catalog

All d 1180-1800mm d 850-1120mm d 670-800mm d 530-630mm d 440-500mm d 360-420mm d 280-340mm d 200-260mm d 160-190mm d 120-150mm d 75-110mm d 20-70mm

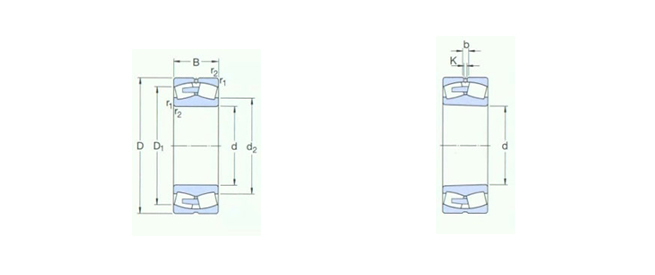

Model Bearing	d (mm)	D (mm)	B (mm)

241/630ECAK30/W33	630	1030	400
231/630CAK/W33	630	1030	315
240/630ECK30J/W33	630	920	290
230/630CAK/W33	630	920	212
239/630CAK/W33	630	850	165
238/630CAKMA/W20	630	780	112
232/600CAK/W33	600	1090	388
241/600ECAK30/W33	600	980	375
231/600CAK/W33	600	980	300
240/600ECAK30/W33	600	870	272
230/600CAK/W33	600	870	200
239/600CAK/W33	600	800	150
232/560CAK/W33	560	1030	365
241/560ECK30J/W33	560	920	355
231/560CAK/W33	560	920	280
240/560ECAK30/W33	560	820	258
230/560CAK/W33	560	820	195
239/560CAK/W33	560	750	140
232/530CAK/W33	530	980	355
241/530ECAK30/W33	530	870	335
