Model Bearing |
Picture |

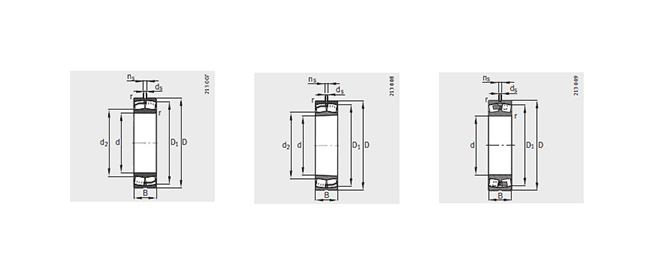

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 23324-AS-MA-T41A | 120 | 260 | 106 | |||
| 22324-E1-T41D | 120 | 260 | 86 | |||
| 22324-E1 | 120 | 260 | 86 | |||
| 22324-E1-K-T41A | 120 | 260 | 86 | |||
| 22324-E1-K | 120 | 260 | 86 | |||
| 23224-E1A-M | 120 | 215 | 76 | |||
| 23224-E1-TVPB | 120 | 215 | 76 | |||
| 23224-E1A-K-M | 120 | 215 | 76 | |||
| 23224-E1-K-TVPB | 120 | 215 | 76 | |||
| 22224-E1-K | 120 | 215 | 58 | |||
| 22224-E1 | 120 | 215 | 58 | |||
| 24124-E1 | 120 | 200 | 80 | |||
| 24124-E1-K30 | 120 | 200 | 80 | |||
| 23124-E1A-M | 120 | 200 | 62 | |||
| 23124-E1A-K-M | 120 | 200 | 62 | |||
| 23124-E1-TVPB | 120 | 200 | 62 | |||
| 23124-E1-K-TVPB | 120 | 200 | 62 | |||
| 24024-E1 | 120 | 180 | 60 | |||
| 24024-E1-K30 | 120 | 180 | 60 | |||
| 23024-E1A-M | 120 | 180 | 46 |
