Model Bearing |
Picture |

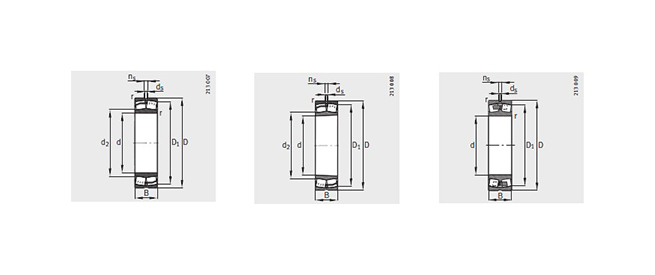

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 23338-A-MA-T41A | 190 | 400 | 155 | |||
| 22338-MB | 190 | 400 | 132 | |||
| 22338-A-MA-T41A | 190 | 400 | 132 | |||
| 22338-K-MB | 190 | 400 | 132 | |||
| 23238-B-MB | 190 | 340 | 120 | |||
| 23238-B-K-MB | 190 | 340 | 120 | |||
| 22238-MB | 190 | 340 | 92 | |||
| 22238-K-MB | 190 | 340 | 92 | |||
| 24138-E1 | 190 | 320 | 128 | |||
| 24138-E1-K30 | 190 | 320 | 128 | |||
| 23138-E1A-M | 190 | 320 | 104 | |||
| 23138-E1A-K-M | 190 | 320 | 104 | |||
| 23138-E1-TVPB | 190 | 320 | 104 | |||
| 23138-E1-K-TVPB | 190 | 320 | 104 | |||
| 24038-E1 | 190 | 290 | 100 | |||
| 24038-E1-K30 | 190 | 290 | 100 | |||
| 23038-E1A-M | 190 | 290 | 75 | |||
| 23038-E1A-K-M | 190 | 290 | 75 | |||
| 23038-E1-TVPB | 190 | 290 | 75 | |||
| 23038-E1-K-TVPB | 190 | 290 | 75 |
