Model Bearing |
Picture |

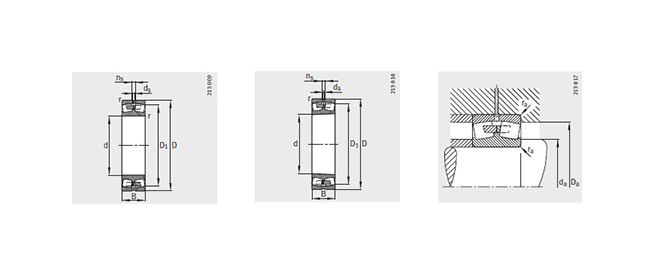

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 241/600-B-MB | 600 | 980 | 375 | |||
| 241/600-B-K30-MB | 600 | 980 | 375 | |||
| 231/600-MB | 600 | 980 | 300 | |||
| 231/600-K-MB | 600 | 980 | 300 | |||
| 240/600-B-MB | 600 | 870 | 272 | |||
| 230/600-B-MB | 600 | 870 | 200 | |||
| 230/600-B-K-MB | 600 | 870 | 200 | |||
| 239/600-B-MB | 600 | 800 | 150 | |||
| 239/600-B-K-MB | 600 | 800 | 150 | |||
| 241/560-B-K30-MB | 560 | 920 | 355 | |||
| 231/560-MB | 560 | 920 | 280 | |||
| 231/560-K-MB | 560 | 920 | 280 | |||
| 240/560-B-MB | 560 | 820 | 258 | |||
| 230/560-B-MB | 560 | 820 | 195 | |||
| 230/560-B-K-MB | 560 | 820 | 195 | |||
| 239/560-B-MB | 560 | 750 | 140 | |||
| 239/560-B-K-MB | 560 | 750 | 140 | |||
| 241/530-B-K30-MB | 530 | 870 | 335 | |||
| 231/530-K-MB | 530 | 870 | 272 | |||
| 240/530-B-MB | 530 | 780 | 250 |
