Model Bearing |
Picture |

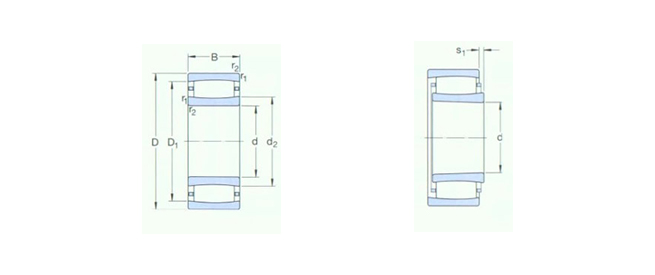

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| C31/600KMB1 | 600 | 980 | 300 | |||
| C30/600KM2 | 600 | 870 | 200 | |||
| C39/600KM | 600 | 800 | 150 | |||
| C31/560KMB1 | 560 | 920 | 280 | |||
| C30/560KM2 | 560 | 820 | 195 | |||
| C39/560KM | 560 | 750 | 140 | |||
| C31/530KM2 | 530 | 870 | 272 | |||
| C30/530KM2 | 530 | 780 | 185 | |||
| C39/530KM | 530 | 710 | 136 | |||
| C41/500K30MB | 500 | 830 | 325 | |||
| C31/500KM2 | 500 | 830 | 264 | |||
| C30/500KM2 | 500 | 720 | 167 | |||
| C39/500KM | 500 | 670 | 128 | |||
| C3196KMB1 | 480 | 790 | 248 | |||
| C3096KM | 480 | 700 | 165 | |||
| C3996KM | 480 | 650 | 128 | |||
| C4192K30M | 460 | 760 | 300 | |||
| C3192KM | 460 | 760 | 240 | |||
| C3092KM2 | 460 | 680 | 163 | |||
| C3992KMB1 | 460 | 620 | 118 |
