Model Bearing |
Picture |

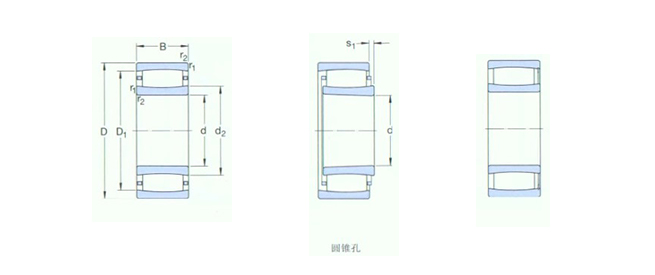

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| C3176KMB1 | 380 | 620 | 194 | |||
| C3076KM | 380 | 560 | 135 | |||
| C3976KMB1 | 380 | 520 | 106 | |||
| C3172KM2 | 360 | 600 | 192 | |||
| C3072KM2 | 360 | 540 | 134 | |||
| C3972KM | 360 | 480 | 90 | |||
| C3168KM2 | 340 | 580 | 190 | |||
| C3068KM | 340 | 520 | 133 | |||
| C3164KM | 320 | 540 | 176 | |||
| C3064KM | 320 | 480 | 121 | |||
| C3160K2 | 300 | 500 | 160 | |||
| C4060K30M | 300 | 460 | 160 | |||
| C3060KM | 300 | 460 | 118 | |||
| C3156K2 | 280 | 460 | 146 | |||
| C3056K2 | 280 | 420 | 106 | |||
| C3152K2 | 260 | 440 | 144 | |||
| C3052K2 | 260 | 400 | 104 | |||
| C3148K2 | 240 | 400 | 128 | |||
| C3048K2 | 240 | 360 | 92 | |||
| C2244K2 | 220 | 400 | 108 |
