Basic size of mm

d	560
D	820
B	195

The basic rated load is kN

trends C	5600
static state Co	11000

Fatigue load limit Pu	720

Rated rotation speed is r/min

Refer to the speed	530
limit speed	750

quality	345

model

Bearing cylindrical hole	*C30/560M
conical bore	*C30/560KM2)

Dimensions are mm

d	560
d2 ～	660
D1 ～	761
r1,2 min	6
s11) ～	45.7

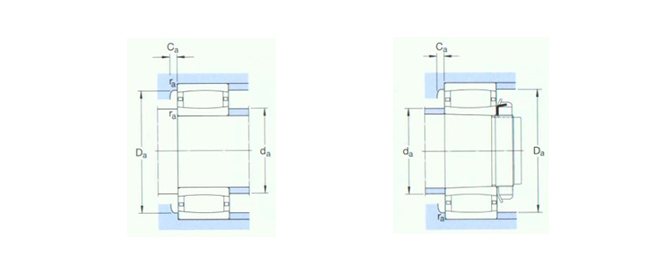

Shoulder gear and chamfer size mm

da min	583
da max	695
Da min	740
Da max	793
Ca2) max	2.7
ra max	5

Calculation coefficient

k1	0.116
k2	0.106
