Model Bearing |
Picture |

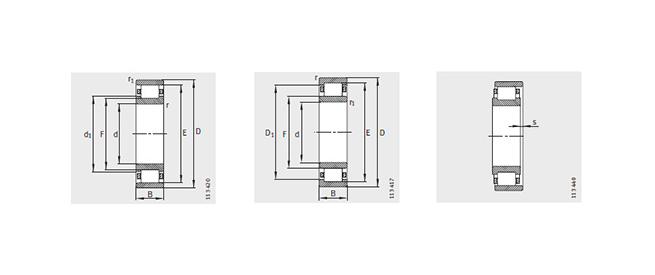

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| NU415-M1 | 75 | 190 | 45 | |||
| NU2315-E-TVP2 | 75 | 160 | 55 | |||
| NU315-E-TVP2 | 75 | 160 | 37 | |||
| N315-E-TVP2 | 75 | 160 | 37 | |||
| NU2215-E-TVP2 | 75 | 130 | 31 | |||
| NU215-E-TVP2 | 75 | 130 | 25 | |||
| N215-E-TVP2 | 75 | 130 | 25 | |||
| NU1015-M1 | 75 | 115 | 20 | |||
| NU414-M1 | 70 | 180 | 42 | |||
| NU2314-E-TVP2 | 70 | 150 | 51 | |||
| NU314-E-TVP2 | 70 | 150 | 35 | |||
| N314-E-TVP2 | 70 | 150 | 35 | |||
| NU2214-E-TVP2 | 70 | 125 | 31 | |||
| NU214-E-TVP2 | 70 | 125 | 24 | |||
| N214-E-TVP2 | 70 | 125 | 24 | |||
| NU1014-M1 | 70 | 110 | 20 | |||
| NU413-M1 | 65 | 160 | 37 | |||
| NU2313-E-TVP2 | 65 | 140 | 48 | |||
| NU313-E-TVP2 | 65 | 140 | 33 | |||
| N313-E-TVP2 | 65 | 140 | 33 |
