Model Bearing |
Picture |

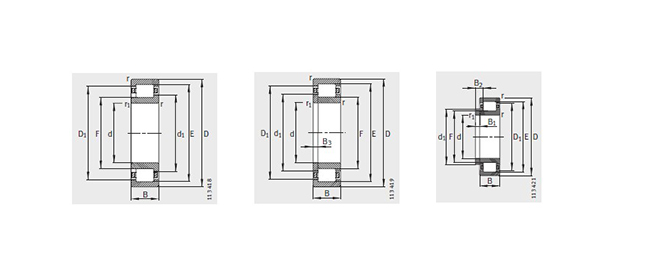

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| HJ2326-E | 130 | 280 | 93 | |||
| HJ326-E | 130 | 280 | 58 | |||
| HJ2226-E | 130 | 230 | 64 | |||
| HJ226-E | 130 | 230 | 40 | |||
| HJ424 | 120 | 310 | 72 | |||
| HJ2324-E | 120 | 260 | 86 | |||
| HJ324-E | 120 | 260 | 55 | |||
| HJ2224-E | 120 | 215 | 58 | |||
| HJ224-E | 120 | 215 | 40 | |||
| NUP2326-E-M1 | 130 | 280 | 93 | |||
| NJ2326-E-M1 | 130 | 280 | 93 | |||
| NUP326-E-TVP2 | 130 | 280 | 58 | |||
| NJ326-E-TVP2 | 130 | 280 | 58 | |||
| NUP2226-E-TVP2 | 130 | 230 | 64 | |||
| NJ2226-E-TVP2 | 130 | 230 | 64 | |||
| NUP226-E-TVP2 | 130 | 230 | 40 | |||
| NJ226-E-TVP2 | 130 | 230 | 40 | |||
| NJ424-M1 | 120 | 310 | 72 | |||
| NUP2324-E-M1 | 120 | 260 | 86 | |||
| NJ2324-E-M1 | 120 | 260 | 86 |
