Model Bearing |
Picture |

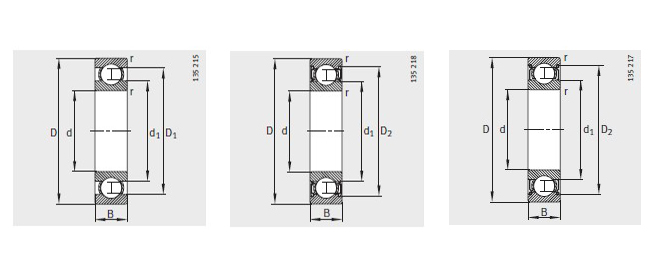

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 6409 | 45 | 120 | 29 | |||
| 62309-2RSR | 45 | 100 | 36 | |||
| 6309-2Z | 45 | 100 | 25 | |||
| 6309-2RSR | 45 | 100 | 25 | |||
| 6309 | 45 | 100 | 25 | |||
| 62209-2RSR | 45 | 85 | 23 | |||
| 6209-2Z | 45 | 85 | 19 | |||
| 6209-2RSR | 45 | 85 | 19 | |||
| 6209 | 45 | 85 | 19 | |||
| 6009-2Z | 45 | 75 | 16 | |||
| 6009-2RSR | 45 | 75 | 16 | |||
| 6009 | 45 | 75 | 16 | |||
| 16009 | 45 | 75 | 10 | |||
| 61909-2Z | 45 | 68 | 12 | |||
| 61909-2RSR | 45 | 68 | 12 | |||
| 61909 | 45 | 68 | 12 | |||
| 61809-2Z-Y | 45 | 58 | 7 | |||
| 61809-2RSR-Y | 45 | 58 | 7 | |||
| 61809-Y | 45 | 58 | 7 |
