Model Bearing |
Picture |

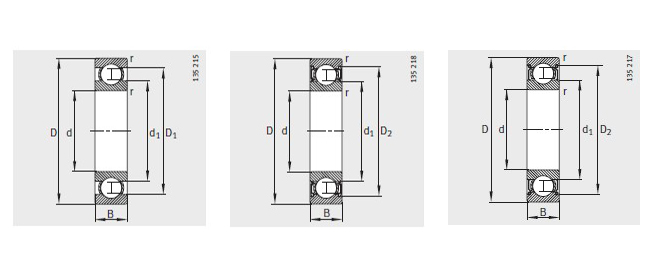

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 6413 | 65 | 160 | 37 | |||
| 6313-2Z | 65 | 140 | 33 | |||
| 6313-2RSR | 65 | 140 | 33 | |||
| 6313 | 65 | 140 | 33 | |||
| 6213-2Z | 65 | 120 | 23 | |||
| 6213-2RSR | 65 | 120 | 23 | |||
| 6213 | 65 | 120 | 23 | |||
| 6013-2Z | 65 | 100 | 18 | |||
| 6013-2RSR | 65 | 100 | 18 | |||
| 6013 | 65 | 100 | 18 | |||
| 16013 | 65 | 100 | 11 | |||
| 61913 | 65 | 90 | 13 | |||
| 61813-2Z-Y | 65 | 85 | 10 | |||
| 61813-2RSR-Y | 65 | 85 | 10 | |||
| 61813-Y | 65 | 85 | 10 | |||
| 6412 | 60 | 150 | 35 | |||
| 6312-2Z | 60 | 130 | 31 | |||
| 6312-2RSR | 60 | 130 | 31 | |||
| 6312 | 60 | 130 | 31 | |||
| 6212-2Z | 60 | 110 | 22 |
