Model Bearing |
Picture |

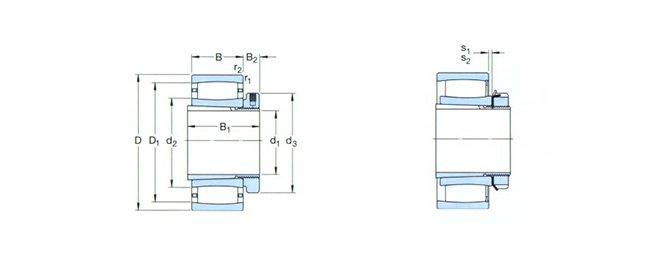

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| H2316 | 70 | 170 | 58 | |||
| H316 | 70 | 140 | 33 | |||
| H316E | 70 | 140 | 33 | |||
| H2315 | 65 | 160 | 55 | |||
| H315 | 65 | 130 | 31 | |||
| H315E | 65 | 130 | 31 | |||
| H2314 | 60 | 150 | 51 | |||
| H314 | 60 | 125 | 31 | |||
| H314E | 60 | 125 | 31 | |||
| H313 | 60 | 120 | 31 | |||
| H313E | 60 | 120 | 31 | |||
| H312 | 55 | 110 | 28 | |||
| H312E | 55 | 110 | 28 | |||
| H311E | 50 | 100 | 25 | |||
| H311E | 50 | 100 | 25 | |||
| H310E | 45 | 90 | 23 | |||
| H310E | 45 | 90 | 23 | |||
| H309E | 40 | 85 | 23 | |||
| H309E | 40 | 85 | 23 | |||
| H308 | 35 | 80 | 23 |
