Basic size of mm

d1	70
D	140
B	33

The basic rated load is kN

trends C	220
static state Co	250

Fatigue load limit Pu	28.5

Rated rotation speed is r/min

Refer to the speed	4500
limit speed	6000

Mass bearing + tightening sleeve	2.9

model

bearing	*C2216K
tapered adapter-sleeve	H316E

Dimensions are mm

d1	70
d2 ～	98.1
d3	105
D1 ～	125
B1	59
B2	18
r1,2 min	2
s11) ～	9.1
s21) ～	-

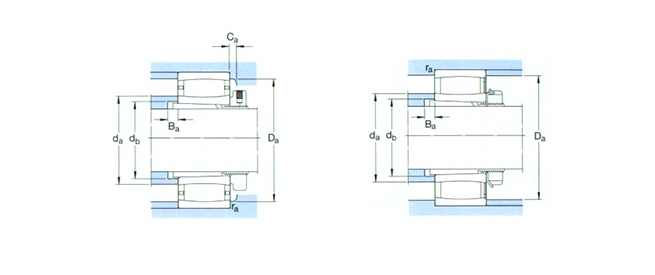

Shoulder gear and chamfer size mm

da max	105
db min	85
Da min	120
Da max	129
Ba min	12
Ca2) min	1.2
ra max	2

Calculation coefficient

k1	0.104
k2	0.121
