N-series thin-wall bearings

All Thin wall bearing NB7 type metric series inner diameter 10-100 mm NBA type thin wall bearing Imperial series Inner diameter 25.4-635 mm Thin wall bearing NBC series Imperial Series Inner diameter 25.4-635.000 mm Thin wall bearing NBX series in English units Inner diameter 25.4-1016.0 mm Thin wall bearing NBX (sealed) series in English units Inner diameter 101.6-304.8 mm
Download PDF Download 3D View on mobile phone
Search

Model

Bearing

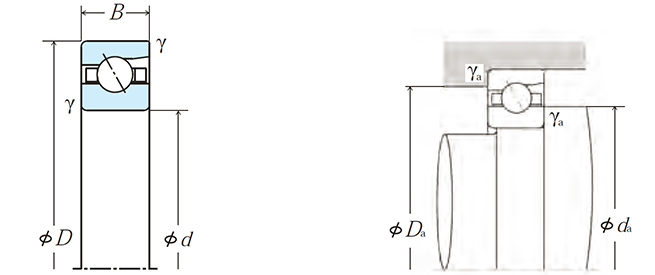

Drawing

Bearing

d

(mm)

D

(mm)

B

(mm)

order
NBA63525 635.000 685.800 25.400
NBA50825 508.000 558.800 25.400
NBA45725 457.200 508.000 25.400
NBA40625 406.400 457.200 25.400
NBA35525 355.600 406.400 25.400
NBA30425 304.800 355.600 25.400
NBA27925 279.400 330.200 25.400
NBA25425 254.000 304.800 25.400
NBA25419 254.000 292.100 19.050
NBA22825 228.600 279.400 25.400
NBA22819 228.600 266.700 19.050
NBA20325 203.200 254.000 25.400
NBA20319 203.200 241.300 19.050
NBA19025 190.500 241.300 25.400
NBA19019 190.500 228.600 19.050
NBA17725 177.800 228.600 25.400
NBA17719 177.800 215.900 19.050
NBA17709 177.800 196.850 9.525
NBA17707 177.800 193.675 7.938
NBA17706 177.800 190.500 6.350
