cylindrical roller bearing

All Single column roller bearing (L-shaped retaining ring) Inner diameter 20-320 mm Single column roller bearing (new standard EM series) Inner diameter 20-200 mm Single column roller bearing (new standard EW series) Inner diameter 25-65 mm Single column roller bearing (standard series) shaft diameter 20-480 mm Single column roller bearing (standard series) shaft diameter 500-1320 mm Double row cylindrical roller bearing (standard series) Inner diameter 25-850 mm RVK type four-row cylindrical roller bearing Inner diameter 110.417~633.333 mm RV type four-row cylindrical roller bearing Inner diameter 100-1348.95 mm Cylindrical roller bearings (with cage type) with adjustable heart ring inner diameter 90~240 mm Cylindrical roller bearing with adjustable heart ring (full loaded type) Inner diameter 50~240 mm The inner diameter of the support roller bearing for the Sendzimir mill is 31.75-120 mm The inner diameter of the pulley is 50~560 mm for RS-48·RS-49 and RSF-48·RSF-49 type The roller uses cylindrical roller bearing RS-50 (pre-lubricated type) with inner diameter of 40~400 mm Full roller cylindrical roller bearing NCF type Inner diameter 100-800 mm Full roller cylindrical roller bearing NNCF type Inner diameter 100-500 mm Precision single row cylindrical roller bearing (ROBUST 10 series) Inner diameter 45-85 mm Precision single row cylindrical roller bearing (low heat 10 series) Inner diameter 45-85 mm Precision single row cylindrical roller bearing (standard series) Inner diameter 30-140 mm Precision double row cylindrical roller bearing (low heat 30 series) inner diameter 30-120 mm Precision double row cylindrical roller bearing (high stiffness 30 series) inner diameter 25-200 mm Precision double row cylindrical roller bearing (high stiffness 39 series) inner diameter 100-280 mm Precision double row cylindrical roller bearing (high stiffness 49 series) inner diameter 100-200 mm
Search

Model

Bearing

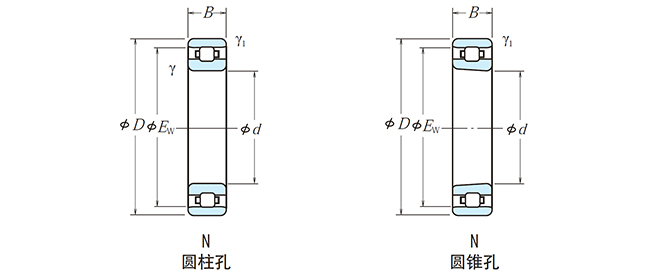

Drawing

Bearing

d

(mm)

D

(mm)

B

(mm)

order

N1028BMR1KR 140 210 33
N1026MRKR 130 200 33
N1024MRKR 120 180 28
N1022BMR1KR 110 170 28
N1021MRKR 105 160 26
N1020MRKR 100 150 24
N1019BMR1KR 95 145 24
N1018MRKR 90 140 24
N1017BMR1KR 85 130 22
N1016BMR1KR 80 125 22
N1015MRKR 75 115 20
N1014BMR1KR 70 110 20
N1013BMR1K1 65 100 18
N1012BMR1KR 60 95 18
N1011BMR1KR 55 90 18
N1010MRKR 50 80 16
N1009MRKR 45 75 16
N1008MRKR 40 68 15
N1007MRKR 35 62 14
N1006MR1KR 30 55 13
