catalog
deep groove ball bearing
Small ball bearings and miniature ball bearings
angular contact ball bearing
Tuning ball bearing
cylindrical roller bearing
tapered roller bearing
Tuning roller bearing
ball thrust bearing
Thrust angle contact ball bearing
Thrust-driven cylindrical roller bearing
Thrust-tapered roller bearing
Thrust-centering roller bearing
N-series thin-wall bearings
needle bearing
With outer spherical ball bearing
Vertical belt bearing
Attachment for bearing
|
Model Bearing |
Picture |

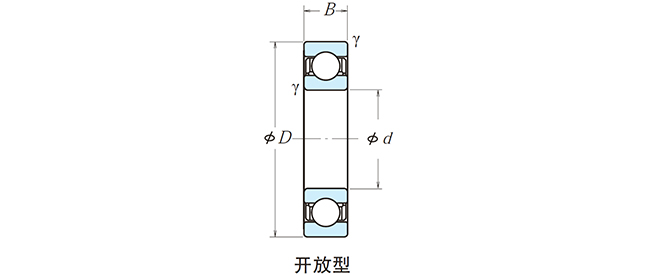

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 69/800 | 800 | 060 | 115 | |||
| 68/800 | 800 | 980 | 82 | |||
| 69/750 | 750 | 000 | 112 | |||
| 68/750 | 750 | 920 | 78 | |||
| 69/710 | 710 | 950 | 106 | |||
| 68/710 | 710 | 870 | 74 | |||
| 60/670 | 670 | 980 | 136 | |||
| 69/670 | 670 | 900 | 103 | |||
| 68/670 | 670 | 820 | 69 | |||
| 60/630 | 630 | 920 | 128 | |||
| 69/630 | 630 | 850 | 100 | |||
| 68/630 | 630 | 780 | 69 | |||
| 60/600 | 600 | 870 | 118 | |||
| 69/600 | 600 | 800 | 90 | |||
| 68/600 | 600 | 730 | 60 | |||
| 60/560 | 560 | 820 | 115 | |||
| 69/560 | 560 | 750 | 85 | |||
| 68/560 | 560 | 680 | 56 | |||
| 60/530 | 530 | 780 | 112 | |||
| 69/530 | 530 | 710 | 82 |
