ball screw

All Rolling ball screw SFS silent type Rolling ball screw SFH_SFNH Rolling ball screw SFI flange type Rolling ball screw SFU flange type External circulation SFT ball screw
Download PDF Download 3D View on mobile phone
Search

Model

Bearing

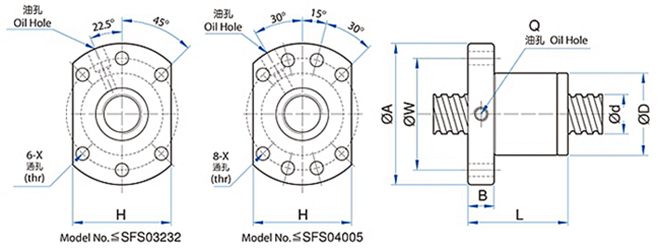

Drawing

Bearing

d

(mm)

D

(mm)

B

(mm)

order
SFS10020-3.8 96 150 30
SFS08020-3.8 77 125 25
SFS08010-3.8 77 105 20
SFS06320-3.8 61 95 20
SFS06316-3.8 61 90 18
SFS06310-3.8 61 90 18
SFS05050-2.8 48 75 18
SFS05050-1.8 48 75 18
SFS05020-3.8 48 75 18
SFS05012-3.8 48 75 18
SFS05010-3.8 48 75 18
SFS05005-3.8 50 75 15
SFS04040-2.8 38 63 15
SFS04040-1.8 38 63 15
SFS04020-2.8 38 63 14
SFS04010-3.8 38 63 14
SFS04008-4.8 38 63 14
SFS04006-4.8 40 63 14
SFS04005-3.8 40 63 15
SFS03232-2.8 31 50 13
