Model Bearing |
Picture |

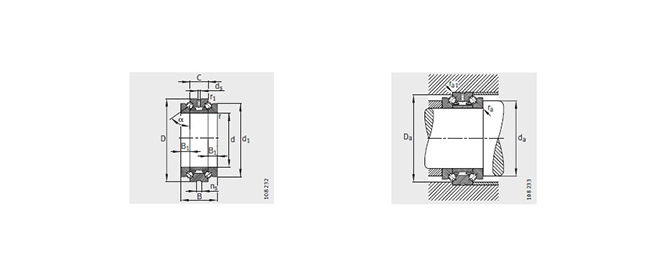

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 234721-M-SP | 142 | 160 | 66 | |||
| 234421-M-SP | 142 | 160 | 66 | |||
| 234720-M-SP | 133 | 150 | 60 | |||
| 234420-M-SP | 133 | 150 | 60 | |||
| 234719-M-SP | 128 | 145 | 60 | |||
| 234419-M-SP | 128 | 145 | 60 | |||
| 234718-M-SP | 123 | 140 | 60 | |||
| 234418-M-SP | 123 | 140 | 60 | |||
| 234717-M-SP | 115 | 130 | 54 | |||
| 234417-M-SP | 115 | 130 | 54 | |||
| 234716-M-SP | 110 | 125 | 54 | |||
| 234416-M-SP | 110 | 125 | 54 | |||
| 234715-M-SP | 102 | 115 | 48 | |||
| 234415-M-SP | 102 | 115 | 48 | |||
| 234714-M-SP | 97 | 110 | 48 | |||
| 234414-M-SP | 97 | 110 | 48 | |||
| 234713-M-SP | 88 | 100 | 44 | |||
| 234413-M-SP | 88 | 100 | 44 | |||
| 234712-M-SP | 83 | 95 | 44 | |||
| 234412-M-SP | 83 | 95 | 44 |
