Model Bearing |
Picture |

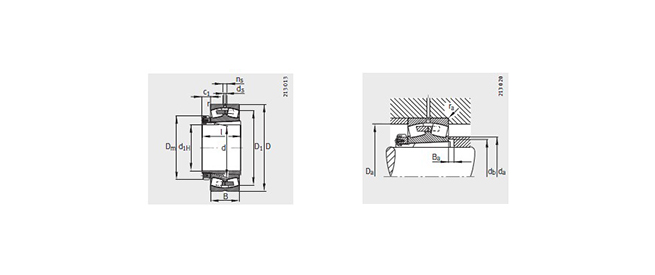

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| H3296 | 480 | 870 | 310 | |||
| H3196 | 480 | 790 | 248 | |||
| H3096 | 480 | 700 | 165 | |||
| H3996 | 480 | 650 | 128 | |||
| H3292 | 460 | 830 | 296 | |||
| H3192 | 460 | 760 | 240 | |||
| H3092 | 460 | 680 | 163 | |||
| H3992 | 460 | 620 | 118 | |||
| H3288 | 440 | 790 | 280 | |||
| H3188 | 440 | 720 | 226 | |||
| H3088 | 440 | 650 | 157 | |||
| H3988 | 440 | 600 | 118 | |||
| H3284 | 420 | 760 | 272 | |||
| H3184 | 420 | 700 | 224 | |||
| H3084X | 420 | 620 | 150 | |||
| H3984 | 420 | 560 | 106 | |||
| H3280 | 400 | 720 | 256 | |||
| H3180 | 400 | 650 | 200 | |||
| H3080 | 400 | 600 | 148 | |||
| H3980 | 400 | 540 | 106 |
