Model Bearing |
Picture |

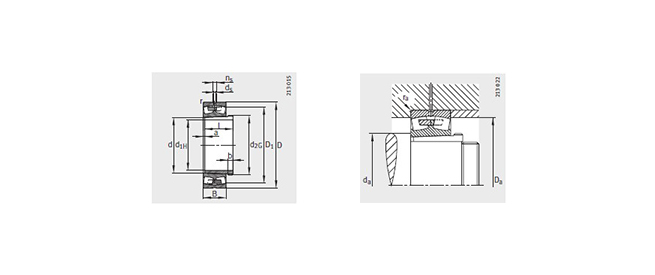

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| AH241/560 | 560 | 920 | 355 | |||
| AH31/560A | 560 | 920 | 280 | |||
| AH30/560A | 560 | 820 | 195 | |||
| AH39/560 | 560 | 750 | 140 | |||
| AH241/530 | 530 | 870 | 335 | |||
| AH31/530A | 530 | 870 | 272 | |||
| AH30/530A | 530 | 780 | 185 | |||
| AH39/530 | 530 | 710 | 136 | |||
| AH241/500 | 500 | 830 | 325 | |||
| AHX31/500 | 500 | 830 | 264 | |||
| AHX30/500 | 500 | 720 | 167 | |||
| AH39/500 | 500 | 670 | 128 | |||
| AHX3296G | 480 | 870 | 310 | |||
| AH24196 | 480 | 790 | 308 | |||
| AHX3196G | 480 | 790 | 248 | |||
| AH24096 | 480 | 700 | 218 | |||
| AHX3096G | 480 | 700 | 165 | |||
| AH3996 | 480 | 650 | 128 | |||
| AHX3292G | 460 | 830 | 296 | |||
| AH24192 | 460 | 760 | 300 |
