Model Bearing |
Picture |

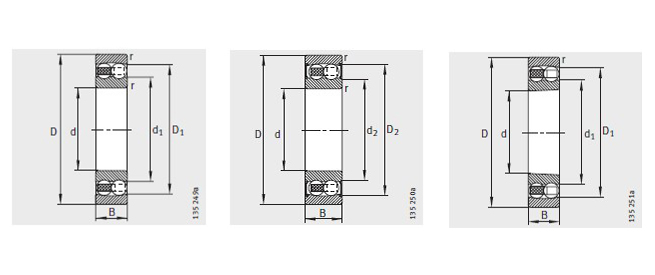

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 2306-TVH | 30 | 72 | 27 | |||
| 2306-K-TVH-C3 | 30 | 72 | 27 | |||
| 2306-2RS-TVH | 30 | 72 | 27 | |||
| 1306-TVH | 30 | 72 | 19 | |||
| 1306-K-TVH-C3 | 30 | 72 | 19 | |||
| 2206-TVH | 30 | 62 | 20 | |||
| 2206-K-TVH-C3 | 30 | 62 | 20 | |||
| 2206-K-2RS-TVH-C3 | 30 | 62 | 20 | |||
| 2206-2RS-TVH | 30 | 62 | 20 | |||
| 1206-TVH | 30 | 62 | 16 | |||
| 2305-TVH | 25 | 62 | 24 | |||
| 2305-K-TVH-C3 | 25 | 62 | 24 | |||
| 2305-2RS-TVH | 25 | 62 | 24 | |||
| 1305-TVH | 25 | 62 | 17 | |||
| 1305-K-TVH-C3 | 25 | 62 | 17 | |||
| 2205-TVH | 25 | 52 | 18 | |||
| 2205-K-TVH-C3 | 25 | 52 | 18 | |||
| 2205-K-2RS-TVH-C3 | 25 | 52 | 18 | |||
| 2205-2RS-TVH | 25 | 52 | 18 | |||
| 1205-TVH | 25 | 52 | 15 |
