Model Bearing |
Picture |

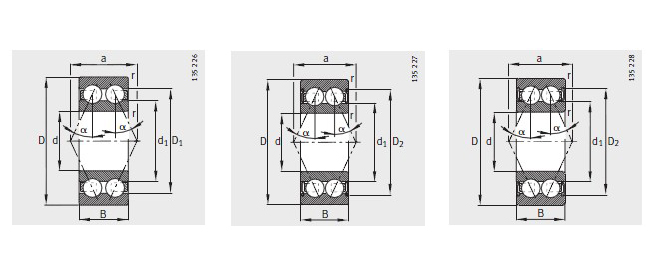

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| 3304-B-2RSR-TVH | 20 | 52 | 22.2 | |||
| 3304-B-2Z-TVH | 20 | 52 | 22.2 | |||
| 3304-B-TVH | 20 | 52 | 22.2 | |||
| 3204-B-2RSR-TVH | 20 | 47 | 20.6 | |||
| 3204-B-2Z-TVH | 20 | 47 | 20.6 | |||
| 3204-B-TVH | 20 | 47 | 20.6 | |||
| 3004-B-2RSR-TVH | 20 | 42 | 16 | |||
| 3004-B-2Z-TVH | 20 | 42 | 16 | |||
| 3004-B-TVH | 20 | 42 | 16 | |||
| 3804-B-2RSR-TVH | 20 | 32 | 10 | |||
| 3804-B-2Z-TVH | 20 | 32 | 10 | |||
| 3804-B-TVH | 20 | 32 | 10 | |||
| 3303-B-TVH | 17 | 47 | 22.2 | |||
| 3203-B-2RSR-TVH | 17 | 40 | 17.5 | |||
| 3203-B-2Z-TVH | 17 | 40 | 17.5 | |||
| 3203-B-TVH | 17 | 40 | 17.5 | |||
| 3003-B-2RSR-TVH | 17 | 35 | 14 | |||
| 3003-B-2Z-TVH | 17 | 35 | 14 | |||
| 3003-B-TVH | 17 | 35 | 14 | |||
| 3803-B-2RSR-TVH | 17 | 26 | 7 |
