Metric single-column tapered roller bearing

All d 280-360mm d 170-260mm d 120-160mm d 100-110mm d 85-95mm d 75-80mm d 65-70mm d 55-60mm d 45-50mm d 35-40mm d 15-32mm
Download PDF Download 3D View on mobile phone
Search

Model

Bearing

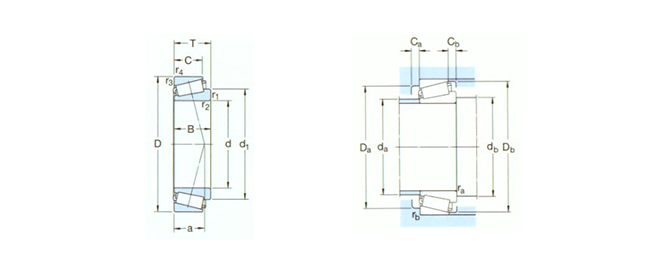

Drawing

Bearing

d

(mm)

D

(mm)

B

(mm)

order
30332J2 160 340 68
32232J2 160 290 80
30232J2 160 290 48
T4EE160/VB406 160 245 59
32032X 160 240 51
T4DB160 160 220 30
31330XJ2 150 320 75
32230J2 150 270 73
30230 150 270 45
33030 150 225 59
32030X 150 225 48
T4DB150 150 210 30
31328XJ2 140 300 70
32228J2 140 250 68
30228J2 140 250 42
32028X 140 210 45
T4CB140 140 195 27
32928 140 190 32
31326XJ2 130 280 66
30326J2 130 280 58
