Model Bearing |
Picture |

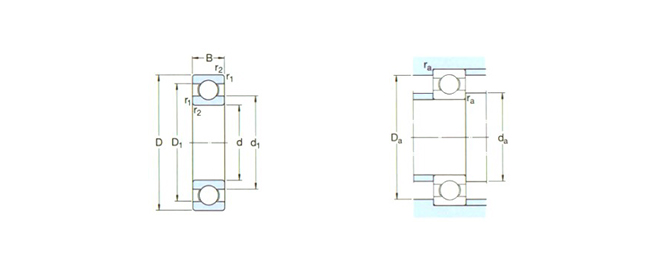

Drawing Bearing |
d (mm) |
D (mm) |
B (mm) |
order |
|---|---|---|---|---|---|---|
| W6300 | 10 | 35 | 11 | |||
| W6200 | 10 | 30 | 9 | |||
| W6000 | 10 | 26 | 8 | |||
| W61900 | 10 | 22 | 6 | |||
| W61800 | 10 | 19 | 5 | |||
| W61700 | 10 | 15 | 3 | |||
| W629 | 9 | 26 | 8 | |||
| W609 | 9 | 24 | 7 | |||
| W619/9 | 9 | 20 | 6 | |||
| W618/9 | 9 | 17 | 4 | |||
| W608 | 8 | 22 | 7 | |||
| W619/8 | 8 | 19 | 6 | |||
| W618/8 | 8 | 16 | 4 | |||
| W627 | 7 | 22 | 7 | |||
| W607 | 7 | 19 | 6 | |||
| W619/7 | 7 | 17 | 5 | |||
| W626 | 6 | 19 | 6 | |||
| W619/6 | 6 | 15 | 5 | |||
| W618/6 | 6 | 13 | 3.5 | |||
| W625 | 5 | 16 | 5 |
