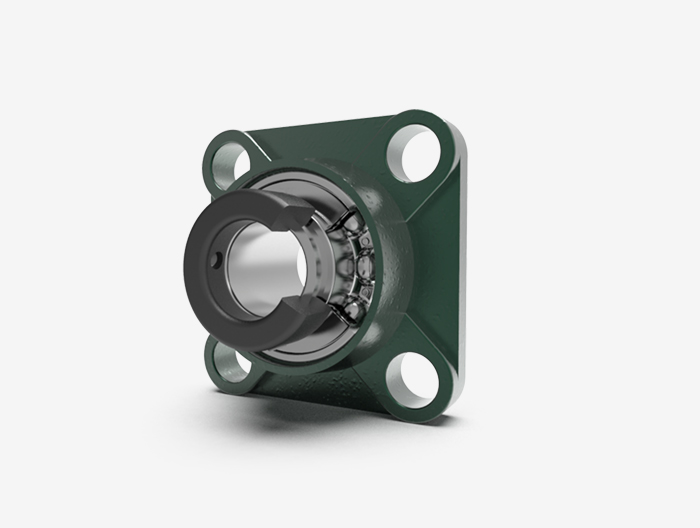

Spherical ball bearing with seat HCFU209

Model:HCFU209

Brand:TBJ

Spherical ball bearing with seat HCFU209 d=45、D=、B=,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

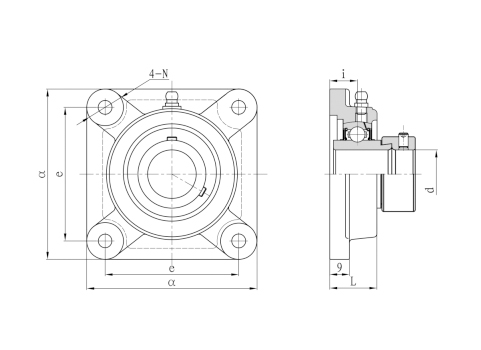

Technical Drawing
Param Print

model

model HCFU209
Bolt size (mm) M14
bearing designation HC209
The code name FU209
weight (kg) 2.63

key dimension (mm)

d 45
L 135
J 105
A2 24
A1 18
A 40
E1 58.9
N 16
S1 21.4
