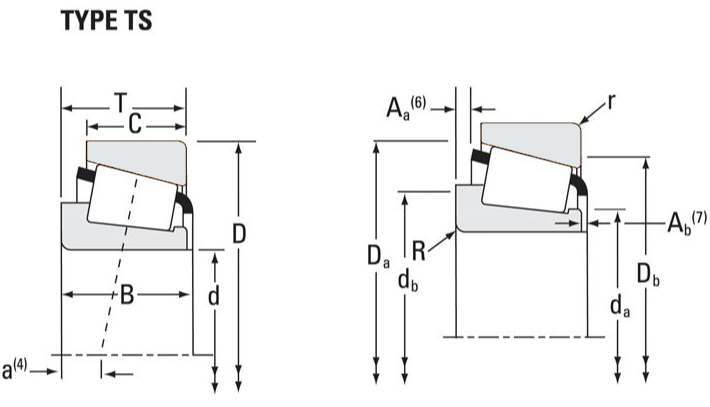

size,mm

d	152.400
D	285.750
T	76.200

specified load,N

Dynamic load (1) C 1	701000
Coefficient (5) e	0.40
Coefficient (5) Y	1.49
Dynamic load (2) C 90	182000
Dynamic load (2) C a90	125000
Coefficient (5) K	1.45
Static load C 0	1060000

bearing designation

inner ring	EE217060
housing washer	217112

Bearings size, mm

B	73.025
C	55.562
a (3)	-15.0

Axial dimension, mm

Maximum shoulder chamfer radius R (4)	1.5
Shaft shoulder diameter D a	171.0
Diameter of the shoulder d b	171.0

Bearings seat size, mm

Maximum shoulder fillet radius r (4)	6.4
Shoulder diameter D a	260.5
Shoulder diameter D b	251.0

retainer

A a	15.00
A b	1.70

coefficient

G 1	556
G 2	71.8
G g	0.1140

weight kg

weight kg	19.41
