size,mm

d	82.550
D	133.350
T	39.688

specified load,N

Dynamic load (1) C 1	202000
Coefficient (5) e	0.40
Coefficient (5) Y	1.49
Dynamic load (2) C 90	52400
Dynamic load (2) C a90	36100
Coefficient (5) K	1.45
Static load C 0	353000

bearing designation

inner ring	HM516449C
housing washer	HM516410

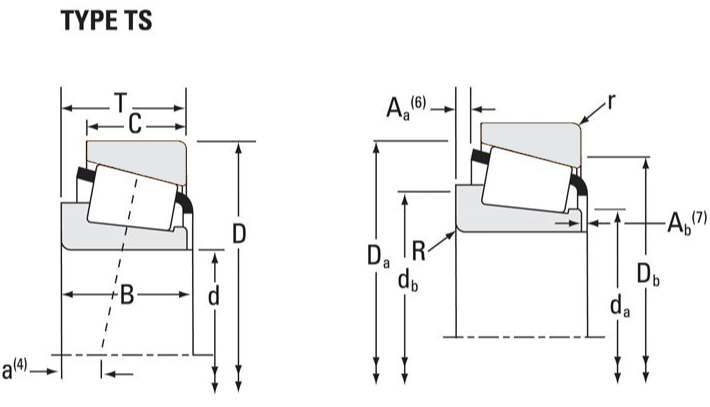

Bearings size, mm

B	39.688
C	32.545
a (3)	-7.4

Axial dimension, mm

Maximum shoulder chamfer radius R (4)	3.5
Shaft shoulder diameter D a	92.0
Diameter of the shoulder d b	99.0

Bearings seat size, mm

Maximum shoulder fillet radius r (4)	3.3
Shoulder diameter D a	128.0
Shoulder diameter D b	118.0

retainer

A a	1.70
A b	2.50

coefficient

G 1	154
G 2	43
G g	0.0955

weight kg

weight kg	2.15
