model

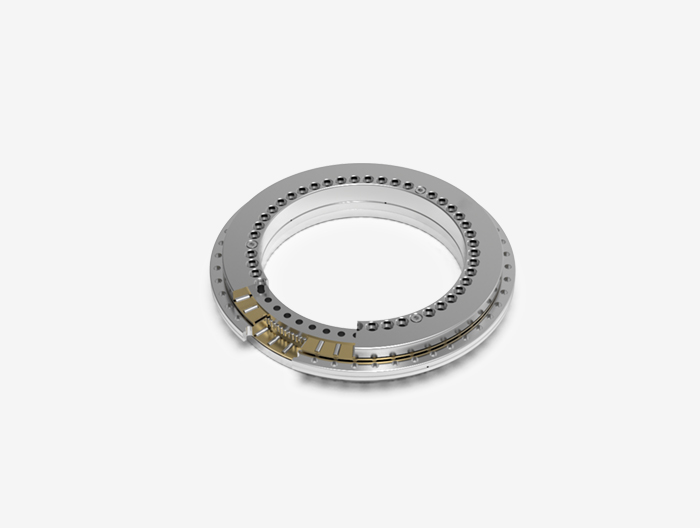

model	YRT50
Number of fixed screws	2
Number of pitch X	12X30
Screw tightening torque of MANm	8.5
Limit rotational speed fat r / min	440
Bearing friction moment Nm	2.5
weight (kg)	1.6

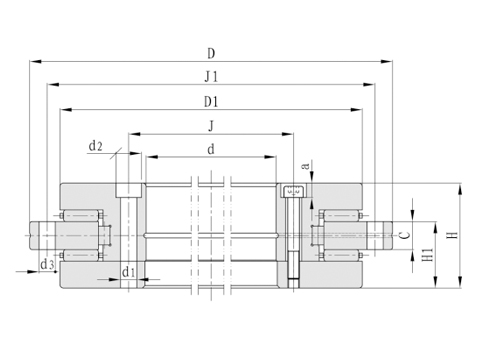

key dimension (mm)

d	50
D	126
H	30
H1	20
C	10
Dmax	105
J	63
J1	116

lashing eye

d1 mm	5.6
d2 mm

inner ring

a mm
quantity	10

housing washer

d3 mm	5.6
quantity	12

Threaded extraction hole

G
quantity

Rated load is in the axial direction

Ca	56
Coa	280

Rated load in the radial direction

Cr	28.5
Cor	49.5
