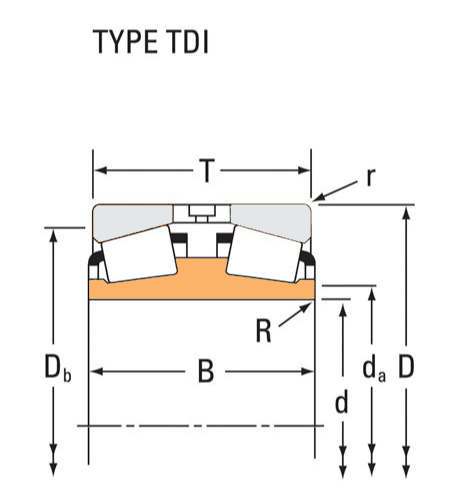

size,mm

d	63.500
D	112.712
T	55.562
B	42.862

specified load,N

Dynamic load (1) C 1	178000
Coefficient (5) e	0.46
Coefficient (5) Y1	1.47
Coefficient (5) Y 2	2.19
Dynamic load (2) C 90	26400
Dynamic load (2) C a90	20800
Dynamic load (2) C 90 (2)	46000
Coefficient (5) K	1.27

bearing designation

inner ring	29586
housing washer	29526D
Separation ring (4)	R800008

Axial dimension, mm

Maximum shoulder chamfer radius R (3)	1.5
Diameter of the shoulder d b	73.0

Bearings seat size, mm

Maximum shoulder fillet radius r (3)	0.8
Shoulder diameter D a	105.0

melt

K a
K b

coefficient

G 1	70.3
G 2	25.8
G g	0.1112

weight kg

weight kg	2.19
