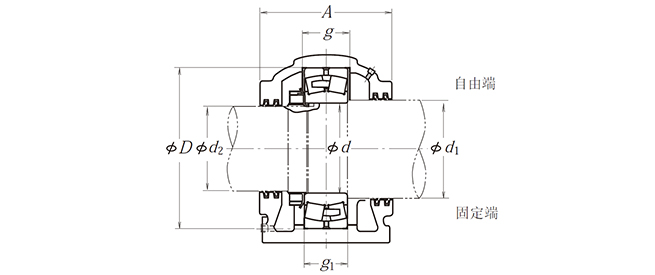

diameter of axle (mm)

d	190

model

free end	SD 338 C
stiff end	SD 338 CG

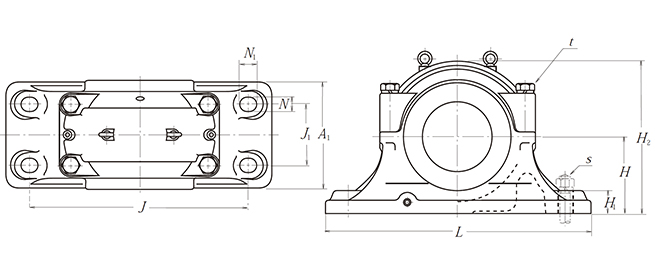

size (mm)

d1	210
d2	180
D H8 H8	400
H h13 h13	240
J	680
N	43
N1	59
A	330
L	820
A1	320
H1	70
H2	475
J1	190
g H13	142
g1 H13	132
t (specifications)	M 30
S (specifications)	M 36

weight (kg)

(consult)	210

Applicable parts

Regulating roller bearing model	22338 CA
Regulating roller bearing Rated dynamic load C r (N)	1890000
Nuut model	AN 38
Gasket or stop washer model	AW 38

grease seal

d1end	GS 46
d2end	GS 40
