diameter of axle (mm)

d	130

model

	SN 226 C

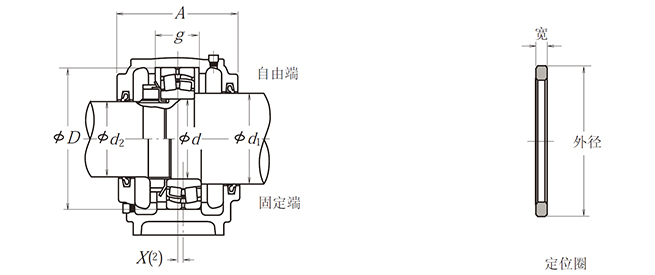

size (mm)

d1	145
d2	125
D H8	230
H h13	150
J	380
N	28
N1	36
A	190
L	445
A1	130
H1	50
H2	290
g H13	90
t (specifications)	M 24
S (specifications)	M 24

weight (kg)

(consult)	30

Applicable parts

Regulating ball bearing model	-
Ball bearing Rated dynamic load C r (N)	-
Regulating roller bearing model	22226 EAE4
Regulating roller bearing Rated dynamic load C r (N)	655000
Nuut model	AN 26
bed down the livestock	AW 26
Positioning ring specification (outer diameter width)	SR 230×13
Number of positioning circles	2

grease seal

d1end	GS 33
d2end	GS 28
