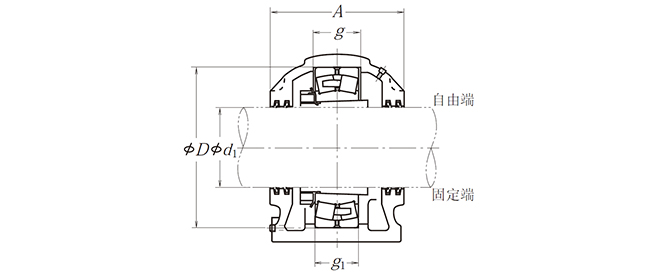

diameter of axle (mm)

d1	410

model

free end	SD 3088 S
stiff end	SD 3088 SG

size (mm)

D H8	650
H h13	390
J	1040
N	57
N1	77
A	460
L	1220
A1	450
H1	125
H2	765
J1	280
g H13	167
g1 H13	157
t (specifications)	M 42
S (specifications)	M 48

weight (kG)

(consult)	870

Applicable parts

Regulating ball bearing model	23088 CAK
Ball bearing Rated dynamic load C r (N)	3150000
Tset set model	H 3088

grease seal

	GS 88
