diameter of axle (mm)

d1	135

model

	SN 630

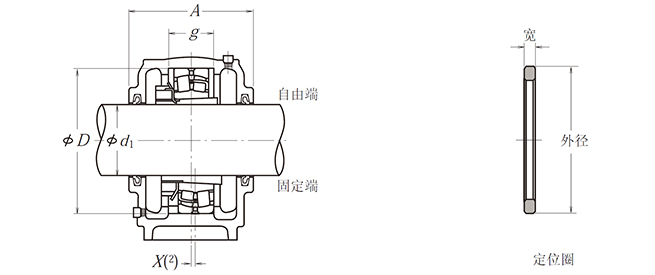

size (mm)

D H8	320
H H13	190
J	560
N	35
N1	45
A	245
L	650
A1	180
H1	65
H2	385
g H13	118
t (specifications)	M30
S (specifications)	M30

weight (kg)

(consult)	98

Applicable parts

Regulating ball bearing model	-
Regulating ball bearing Rated dynamic load C r (N)	-
Regulating roller bearing model	22330CAK
Regulating roller bearing Rated dynamic load C r (N)	1220000
Tset set model	H2330
Positioning ring specification (outer diameter width)	SR320×10
number	1

grease seal

	GS30
