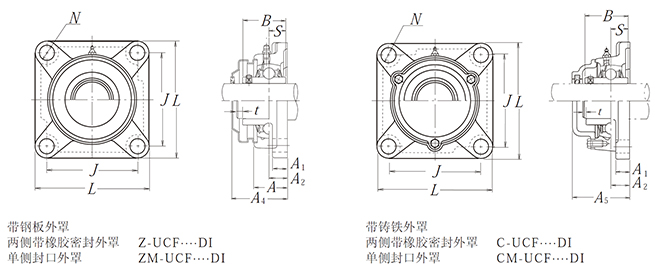

Axis diameter (mm, inch)

	2 7/8

Block assembly bearing model

	UCF215-214D1

Size (mm, inch)

L	7 7/8
J	6 17/64
A2	1 11/32
A1	7/8
A	2 7/32
N	3/4
A0	3 3/32
B	3.063
S	1.31

Installation bolt specification (mm)

	5/8

bearing symbol

	UC215-214D1

Outside the model

	F215D1

Bearing type with steel plate cover holder component

	-

With cast iron cover holder component bearing model

	C(CM)-UCF215-214D1

Size (mm, inch)

t(max)	5/32
A4	-
A5	4 1/32

Weight of the seat bearing (kg)

UCF	15
Z(ZM)	-
C(CM)	19
