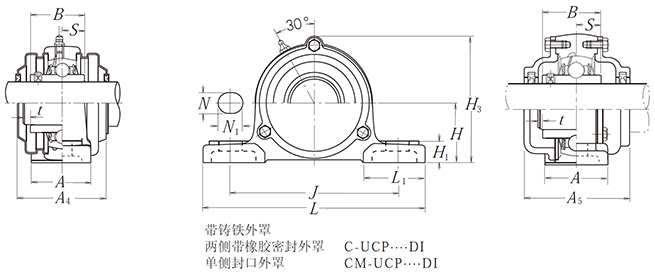

Axis diameter (mm, inch)

	2 15/16

Block assembly bearing model

	UCP215-215D1

Size (mm, inch)

H	3 1/4
L	10 13/16
J	8 17/32
A	2 29/32
N	31/32
N1	1 3/32
H1	1 3/16
H2	6 13/32
L1	3 5/32
B	3.063
S	1.311

Mounting bolts specification (mm, inch)

	3/4

bearing symbol

	UC215-215D1

Outside the model

	P215D1

Bearing type with steel plate cover holder component

	-

With cast iron cover holder component bearing model

	C(CM)-UCP215-215D1

Size (mm, inch)

t(max)	5/32
A4	-
H3	6 3/8
A5	5 5/16

Weight of the seat bearing (kg)

UCP	16
Z(ZM)	-
C(CM)	24
