outline dimension (mm)

d	420
D	730
T	185
γ (min)	7.5

specified load (KN)

Ca	5650
C0a	23500

Rated load load {kgf}

Ca	575000
C0a	2400000

Rated speed min ^-1

oiling	450

bearing symbol

	29484

size (mm)

d1	700
D1	556
B1	67
B2	178
C	89
A	244

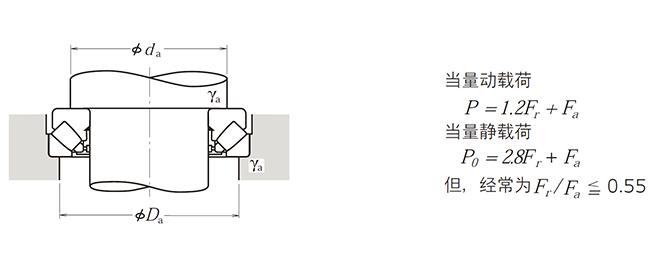

installation size (mm)

da （min）	560
da (max)	630
γa (max)	6

weight (kg)

(consult)	323
