Thrust-driven cylindrical roller bearing 2030TMP2204-T-UPA

Model:2030TMP2204-T-UPA

Brand:NSK

Thrust-driven cylindrical roller bearing 2030TMP2204-T-UPA d=2210、D=2210、B=,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

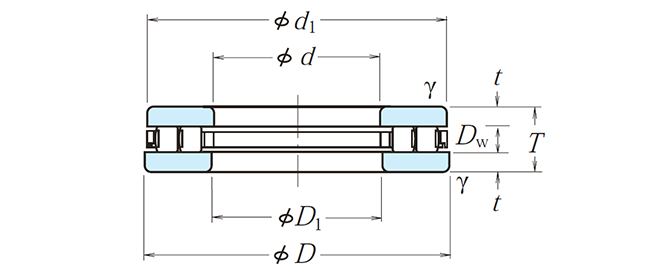

Technical Drawing
Param Print

outline dimension (mm)

d 2030
D 2210
T 132
γ(min) 4

specified load (KN)

Ca 4600
C0a 49500

Rated load (kgf)

Ca 465000
C0a 5050000

Rated speed min -1

Fat lubrication 63
oiling 190

bearing symbol

2030TMP2204-T-UPA

size (mm)

d1 2210
D1 2030
DW 40
t 46

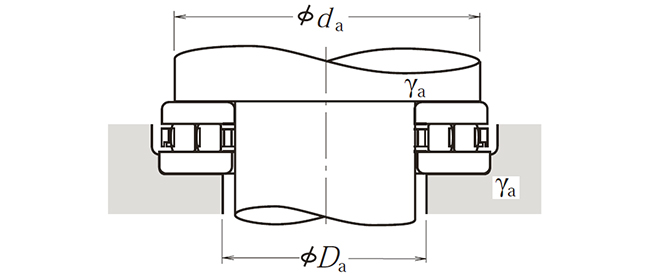

installation size (mm)

da（min） 2190
da(max) 2088
γa（max） 3

weight (kg)

(consult) 605
