Thrust angle contact ball bearing 40TAC03AT85

Model:40TAC03AT85

Brand:NSK

Thrust angle contact ball bearing 40TAC03AT85 d=49.7、D=90、B=23,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

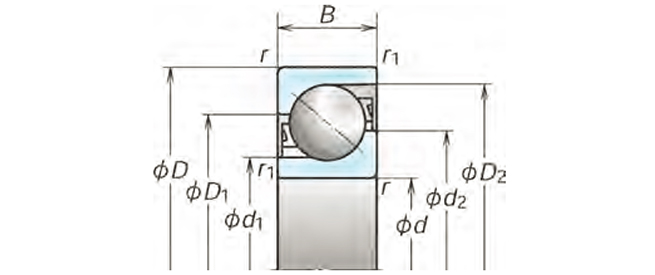

Technical Drawing
Param Print

outline dimension (mm)

d 40
D 90
B 23
γ(min) 1.5
γ1(min） 1.0

size (mm)

d1 49.7
d2 61.4
D1 68.6
D2 81.9

Lubricating grease is recommended

Fill quantity
(cc)		 15

Contact Angle (degree)

50

Rated speed min -1

grease lubrication 4600

bearing symbol

40TAC03AT85

Rated dynamic load C a

Single column bearing load
DF, DB
(N)		 102000
Double column withstand load
DT, DF, DBD
DFF, DBB
(N)		 166000
Three columns bear load
DTD,DFT,DBT
（N)		 220000

Extreme axial load

Single column bearing load
DF, DB
(N)		 75500
Double column withstand load
DT, DF, DBD
DFF, DBB
(N)		 151000
Three columns bear load
DTD,DFT,DBT
（N)		 226000
