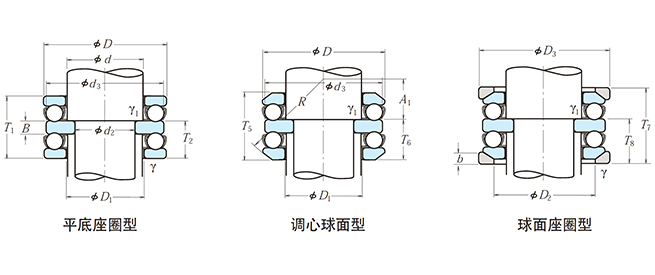

outline dimension (mm)

d2	110
d	130
D	190
T1	80
T5	85.8
T7	96
γ (min)	1.5
γ1(min）	1.1

specified load (N)

Ca	183000
C0a	550000

Rated load load {kgf}

Ca	18700
C0a	56000

Limit speed min ^-1

Fat lubrication	1000
oiling	1500

bearing symbol

Flat base is ring type	52226X
Heart ball face type	54226X
Serical seat circle	54226XU

size (mm)

d3	189.5
D1	133
D2	160
D3	195
T2	49
T6	51.9
T8	57
B	18
b	17
A1	63
R	140

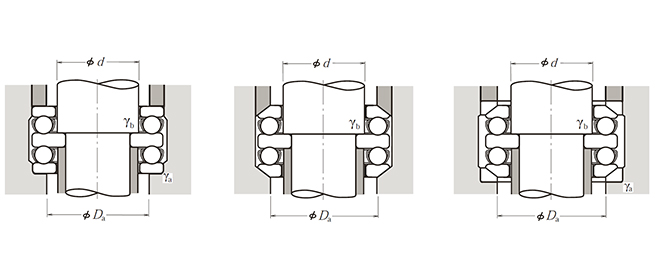

installation size (mm)

da (max)	160
γa (max)	1.5
γb (max)	1

Weight (kg) (Ref.)

Flat base is ring type	7.43
Heart ball face type	8.24
Serical seat circle	10.2
