outline dimension (mm)

d	750
D	1220
B4	750
C4	750
γ1 （min）	9.6
γ (min)	9.6

specified load (KN)

Cr	24900
Cor	59000

Rated load load {kgf}

Cr	2540000
Cor	6000000

bearing symbol

	750KV81

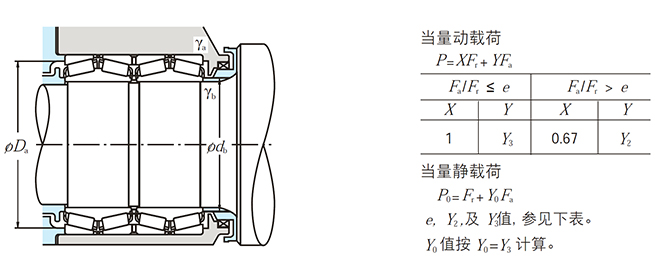

Figure legend model

	2

installation size (mm)

db	855
Da	1125
γa (max)	8
γb (max)	8

constant

e	0.37

Axial load coefficient

Y2	2.7
Y3	1.8

weight (kg)

(consult)	3550

Reference bearing code

	—
