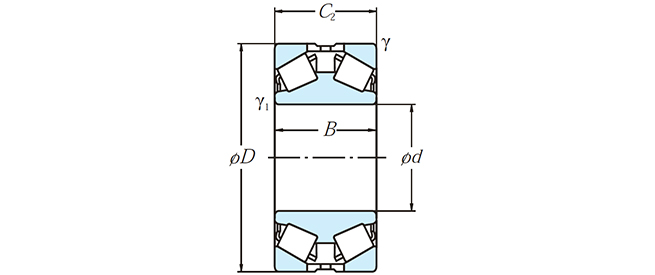

outline dimension (mm)

d	350
D	618
B	200
C2	200
γ1 （min）	6
γ (min)	6

specified load (KN)

Cr	2880
Cor	5450

Rated load load {kgf}

Cr	293000
Cor	555000

bearing symbol

	350KDH6102

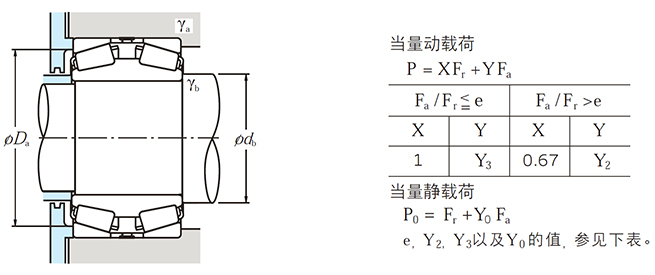

installation size (mm)

db	395
Da	556
γa (max)	5
γb (max)	5

constant

e	0.87

Axial load coefficient

Y2	1.2
Y3	0.78
Y0	0.76

weight (kg)

(consult)	236
