outline dimension (mm)

d	980
D	1200
B2	150
C	100
γ (min)	6
γ1 （min）	3

specified load (KN)

Cr	2580
Cor	8350

Rated load load {kgf}

Cr	263000
Cor	850000

bearing symbol

	980KDE1201+L

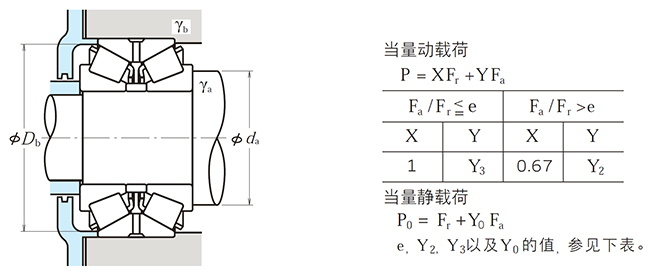

installation size (mm)

da	1046
Db	1177
γa (max)	5
γb (max)	2.5

constant

e	0.68

Axial load coefficient

Y2	1.5
Y3	0.99
Y0	0.97

weight (kg)

(consult)	341
