model

model	114.32.1800
Reference weight (kg)

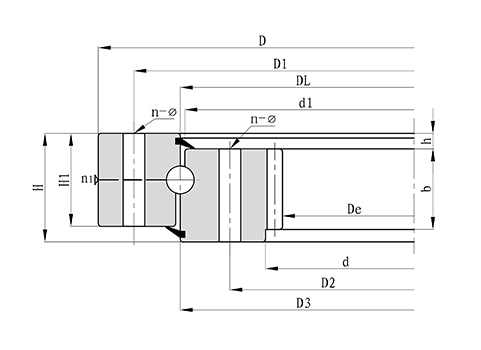

outline dimension (mm)

D	1940
d	1660
H	91

Installation hole size

D1 mm	1887
D2 mm	1713
dn1 dn2 mm	33
dm1 dm2 mm	M24
L mm	48
n	45

structure size

n1	5
D3 mm	1798
d1 mm	1802
H1 mm	81
h	10

Gear parameters

b mm	75
m mm	16
da mm	1574.4
Z	99

Gear circumference force(KN)

normalization	151
tempering	224
