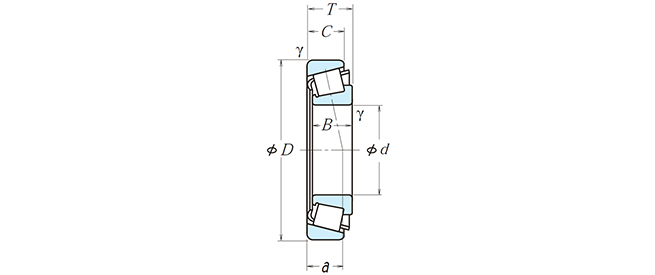

outline dimension (mm)

d	266.700
D	393.700
T	73.817
B	69.85
C	50.005
Inner circle γ (min)	6.4
Outer ring γ (min)	6.4

specified load (KN)

Cr	700
Cor	1280

Rated load load {kgf}

Cr	71500
Cor	131000

bearing symbol

inner ring	EE275105
housing washer	275155

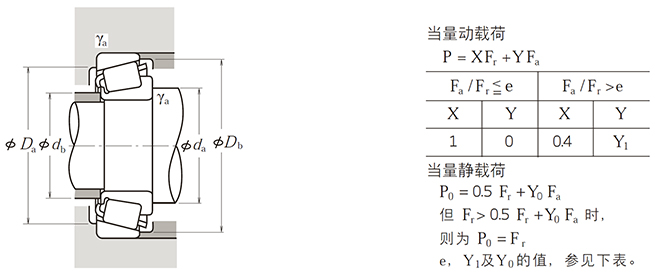

installation size (mm)

da	306
db	286
Da	364
Db	382
Inner circle γ a (max)	6.4
Outer circle γ a (max)	6.4

Action point location (mm)

a	76.1

constant

e	0.40

Axial load of coefficient

Y1	1.5
Y0	0.82

weight (kg)

(consult)	26.7
