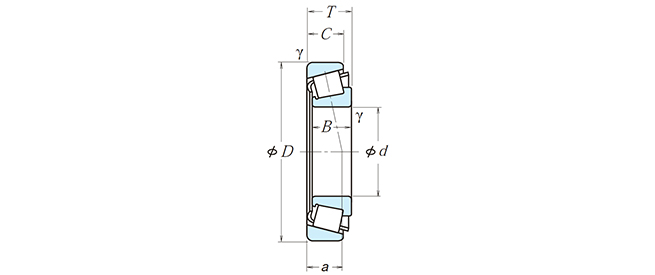

outline dimension (mm)

d	110.000
D	180.000
T	47.000
B	46.000
C	38.000
Inner circle γ (min)	3.0
Outer ring γ 1 (min)	2.5

specified load (KN)

Cr	310
Cor	490

Rated load load {kgf}

Cr	31500
Cor	50000

Rated speed min ^-1

Fat lubrication	1900
oiling	2600

bearing symbol

inner ring	▲JHM522649
housing washer	▲JHM522610

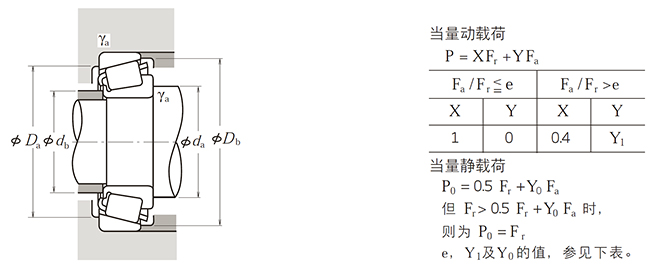

installation size (mm)

da	127
db	122
Da	162
Db	172
Inner circle γ a (max)	3
Outer ring γ a (max)	2.5

Action point position (mm)

a	40.9

constant

e	0.41

Axial load of coefficient

Y1	1.5
Y0	0.81

weight (kg)

(consult)	4.63
