outline dimension (mm)

d	780
D	925
T	95
B	92
C	75
Inner circle γ (min)	6
Outer ring γ (min)	5

specified load (N)

Cr	1960
Cor	5800

Rated load load {kgf}

Cr	200000
Cor	590000

bearing symbol

	R780-2

ISO355 Size series (reference)

	—

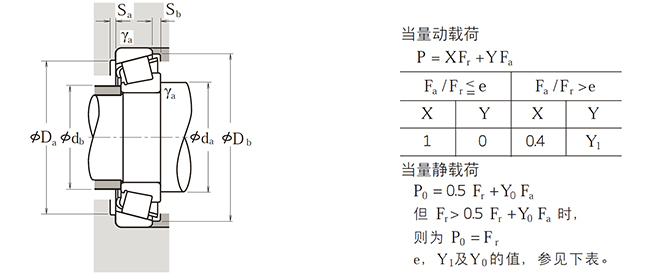

installation size (mm)

da	822
db	799
da(max)	893
da（min）	(pour)
Db(min)	913
Sa(min）	—
Sb(min）	—
Inner circle γ a (max)	5
Outer ring γ a (max)	4

Point position (mm)

a	140.6

constant

e	0.34

Axial load of coefficient

Y1	1.7
Y0	0.96

weight (kg)

(consult)	110
