outline dimension (mm)

d	85
D	130
B	60
C	59
CX(最小）	0.6
γ (min)	0.6

specified load (KN)

Cr	256
Cor	445

Rated load load {kgf}

Cr	26200
Cor	45500

Rated speed min ^-1

Fat lubrication	1200

bearing symbol

An endless ring	RS-5017
With a stop ring	RS-5017NR

Stop ring size (mm)

C1	48
S	5.5
D2	134.5
f	2.5

Oil hole (mm)

dOH	3

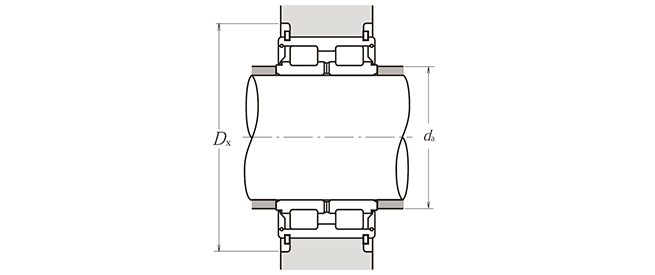

installation size (mm)

da （min）	90
Dx (min)	141

weight (kg)

(consult)	2.75
